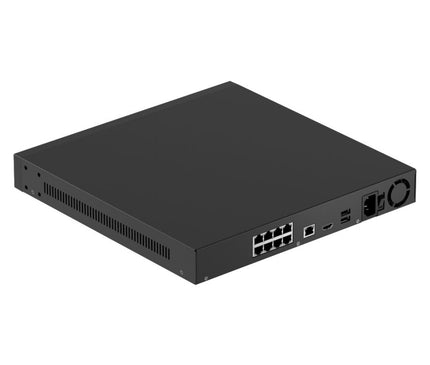

Ajax Systems H2D8PAC NVR Recorder, 8 Channels, 8x PoE, 4K HDMI, Black

The Ajax NVR H2D8PAC is a powerful and reliable network video recorder (NVR) designed for modern security systems. With support for up to 8 IP cameras, this recorder offers a centralized solution for managing, storing, and viewing high-quality video footage.

Thanks to the 4K HDMI output, you can view live footage and recordings with crystal-clear clarity on a monitor or TV. The integrated 8 PoE ports make installation easy: cameras are powered directly via the network cable, eliminating the need for additional power supplies.

The NVR supports video compression using the efficient H.265 standard, ensuring an optimal balance between image quality and storage usage. With support for recordings up to 12 megapixels, you’re guaranteed detailed images.

For storage, the Ajax NVR H2D8PAC features space for two hot-swappable hard drives. This means you can replace drives without shutting down the system—ideal for continuous use in professional environments.

In addition, the recorder is compatible with both Ajax cameras and other IP cameras via ONVIF and RTSP protocols, offering flexibility when setting up your security system.

• 8-channel NVR for IP cameras
• 4K HDMI output for razor-sharp display
• 8 integrated PoE ports (up to 160W total)
• Supports up to 12MP recording quality
• H.265 video compression
• Support for 2 hot-swappable HDDs
• Compatible with ONVIF and RTSP
• Reliable network connection up to 1 Gbps

Specifications:

Video & Performance

• Number of channels: 8 IP cameras
• Maximum resolution: up to 12 MP recording
• HDMI output: 4K (3840 × 2160)
• Video compression: H.265 / H.264
• Bandwidth: up to 160 Mbps (in/out)

Network & Compatibility

• Ethernet: 1× RJ-45 (up to 1 Gbps)
• Protocol Support: ONVIF (S/T/M), RTSP
• Compatibility: Ajax systems + third-party IP cameras

PoE & Connections

• PoE ports: 8× (IEEE 802.3af/at)
• Max. PoE power: 25W per port (160W total)
• USB: 3× USB 2.0
• Video output: 1× HDMI

Storage

• HDD slots: 2× SATA (3.5")
• Maximum capacity: up to 16 TB per drive
• Hot-swap support: yes

Features

• Continuous recording (24/7)
• Motion detection and AI object detection
• Video Management System (VMS) with live view and playback
• Remote management via the Ajax app

Physical Specifications & Power

• Dimensions: approx. 330 × 330 × 44 mm
• Weight: ± 3.3 kg
• Power supply: 100–240V AC, max. 320W
• Operating temperature: 0°C to +50°C
• Enclosure: IP20 (indoor use)
