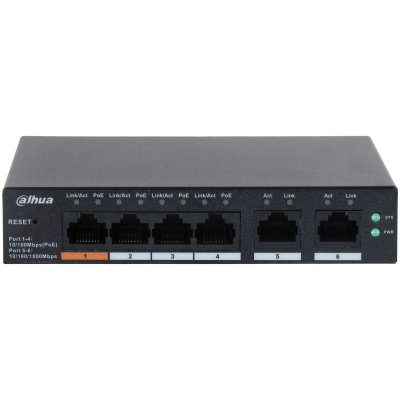

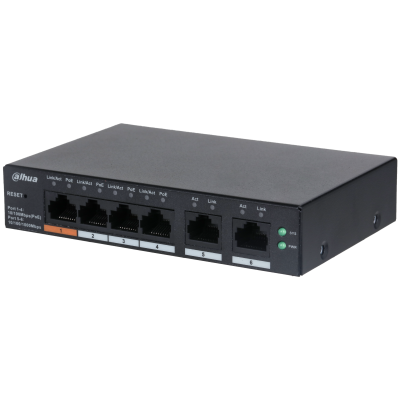

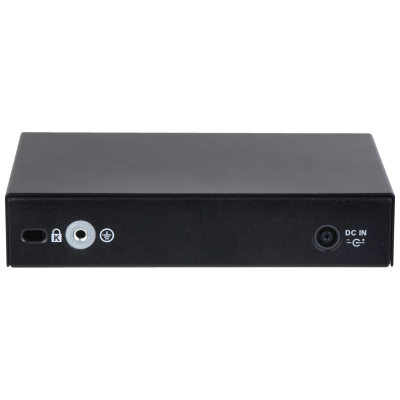

DH-CS4006-4ET-60, 4xPoE 100Mb ports, Smart Switch, 2x Uplink Gigabit

Dahua DH-CS4006-4ET-60, 4xPoE 100Mb ports, Smart Switch, 2x Uplink Gigabit

• Deployable as a Cloud managed, web managed or unmanaged switch: By default, the IP address is set to DHCP and obtained automatically. Also, the switch is configured not to cause problems with third-party network equipment. This makes the switch plug & play and as easy to deploy as an unmanaged switch

• Fully integrated with Dahua DoLynk: Dolynk is a cloud management environment for the installer. The cloud managed switches can be fully configured and monitored from this environment or with the Dolynk app

• Managed switch features, the following features are available
• STP, spanning tree protocol
• VLAN, suitable for working with virtual networks
• PoE management, per port configure PoE properties

• Specification	Details
  Power adapter included	Yes
  PoE	Yes
  Ethernet ports	4
  Ethernet port speed	10/100 Mbps
  Ethernet port uplink speed	10/100/1000 Mbps
  Description of function slots	Port 1-4: 4 × RJ-45 10/100 Mbps (PoE) Port 5-6: 2 × RJ-45 10/100/1000 Mbps (uplink)
  Reset button	1
  Power supply	External power supply: 53 VDC, 1.226 A
  Operating temperature	-10 °C to +55 °C (+14 °F to +131 °F)
  Operating humidity	5%-95% (RH), non-condensing
  Storage temperature	-40 °C to +70 °C (-40 °F to +158 °F)
  Storage humidity	5%-95% (RH), non-condensing
  Energy consumption	Idle: ≤3 W ; Full load: 65 W
  Low	Layer 2
  Management type	Yes
  Smart Managed Switch	Yes
  MTBF	232.62 years
  Switch capacity	4.8 Gbps
  Packet forwarding capacity	3.57 Mpps
  Package buffer size	4 Mbit
  Jumbo Frame	9216 Byte
  MAC table size	8K
  VLAN number	32
  Standard communication	IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab
  PoE protocol	IEEE802.3af; IEEE802.3at; Hi-PoE
  PoE power	Port 1 ≤ 60 W, Port 2-4 ≤ 30 W, total ≤ 60 W
  PoE power management	Yes
  PoE pin assignment	1,2,4,5?V+?,3,6,7,8?V-?
  Long-range PoE transmission	Yes
  VLAN function	Port-based VLAN
  IEEE 802.3x Flow Control	Yes
  DHCP function	DHCP Client
  Device Manager	Web management; App management
  Static protection	Air discharge: 8 kV; Contact discharge: 6 kV
  Lightning protection	Common mode: 4 kV; Differential mode: 2 kV
  Net weight	0.28 kg (0.64 lb)
  Gross Weight	0.92 kg (2.02 lb)
  Product dimensions	130 mm × 90 mm × 26 mm (5.11" × 3.54" × 1.02") (L × W × H)
  Packaging dimensions	265 mm × 238 mm × 76 mm (10.43" × 9.37" × 2.99") (L × W × H)
  Housing material	Metal plate
  Installation	Desk mounting; wall mounting
