Product form

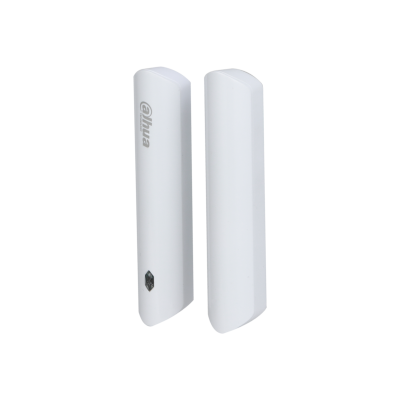

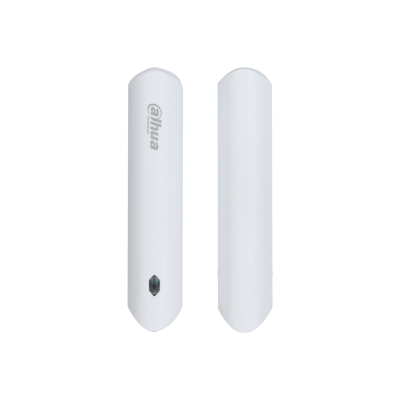

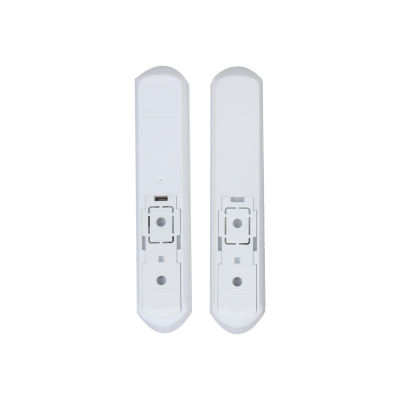

DHI-ARD324-W2(868), Magnetic Contact Wireless/Trill Detector/Tilt Detector

Delivery time 1-2 working days

682 kr564 kr -17% -17%
566 kr468 kr Incl. VATExcl. VAT

    • American Express
    • Apple Pay
    • Bancontact
    • BLIK
    • Google Pay
    • iDEAL
    • Klarna
    • Maestro
    • Mastercard
    • MobilePay
    • PayPal
    • Union Pay
    • Visa
    • Pay afterwards within 30 days - both private and business

      <p>Pay afterwards within 30 days - both private and business</p>

    B2B Installers order with discount

    • Showroom in Gorinchem
    • The best service and warranty
    • 3500+ customers give us a 4.71 / 5
    • Free remote installation
    • Free returns within 14 days

    check Associated products for DHI-ARD324-W2(868), Magnetic Contact Wireless/Trill Detector/Tilt Detector

    Size chart

    The DHI-ARD324-W2(868) is a wireless magnetic contact with mounting for Dahua alarm system, suitable for securing doors and windows. It has a reed contact, up to 40 mm opening, 1 input for dry contact, low battery warning, LED indicator and tamper protection. In addition, the contact can measure the temperature level with an accuracy of ±1°C in the range of -15°C to +65°C. In addition to open and close detection, this model also has a tilt sensor and a shock sensor, making this model perfect for bedroom windows where you set the alarm in night mode and still be able to ventilate the room with tilt windows.

    The DHI-ARD324-W2 communicates bidirectionally at distances up to 1200 m in open space, using wireless frequency 868 MHz, with protection by AES128 encryption and frequency hopping. The rugged housing, made of high quality PC + ABS material, allows use in temperatures between -10°C and +55°C, and is designed for indoor applications. It is powered by a CR123A battery with an autonomy of up to 5 years.

    Specifications

    Input/Output Alarm Input 1(Normally Closed; Normally Open; Pulse counter)
    Function Indicator lamp 1 × green alarm indicator
    Button 1 × power button
    Remote update Cloud update
    Low Battery Detection Yes
    Sabotage Yes
    Measuring Range (Temperature) Indoor: -15 °C to +65 °C (+5 °F to +149 °F)
    Measuring accuracy ±1 °C (±1.8 °F)
    Technical Sensor Triaxial Accelerometer, Reed Switch
    Movement Distance < 40 mm (1.57")
    Shock detection High, normal, low
    Tilt detection To 25°
    Test mode Yes
    Scenario Non-metal doors
    Operating current 12 uA
    Alarm current 2.3 mA
    Wireless Carrier Frequency 868.0 MHz-868.6 MHz
    Send Power (EIRP) Limit 25 mW
    Communication Distance To 1.200 m (3937.01 ft) in an open space
    Communication mechanism Two-way
    Frequency jump Yes
    Encryption mode AES128
    General Power supply CR123A × 1
    Battery life 3 years (external input type is NO, triggered 2 times per day, battery efficiency of 70%)
    1.5 years (external input type is NC)
    Power consumption 167 mW
    Operating temperature Indoor: -10 °C to +55 °C (+14 °F to +131 °F)
    Operating humidity 10%-90% (RH)
    Storage temperature -10 °C to +55 °C (+14 °F to +131 °F)
    Storage humidity 10%-90% (RH)
    Product dimensions 100.2 mm × 20.8 mm × 20.3 mm (3.94" × 0.82" × 0.80")
    Net Weight 70 g (0.15 lb)
    Installation Bracket mount
    Housing Material PC + ABS
    Certifications CE
