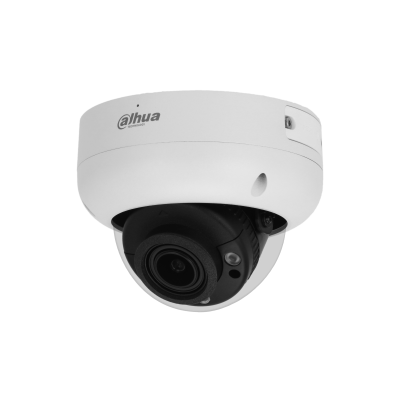

HDBW5842R-ASE-S3 8MP D/N Deeplight IR Dome 2.8mm lens
The WizMind S Series includes a professional range of intelligent cameras that use AI-Powered image-enhancing technologies (AI ISP) and feature Deeplight; an upgrade of the existing Starlight technology that now uses a deep learning algorithms for image optimisation, enabling the cameras to deliver outstanding images in low-light situations. This allows the cameras to easily adapt to different scenes and perform optimally in different challenging environments.
The cameras in this series offer significantly enhanced audio and video analysis. In doing so, they record appearance characteristics in video metadata, distinguish various sounds through advanced sound detection, feature face detection, enhanced perimeter security with 99% accuracy, improved people counting and more smart features.
Eigenschappen:
- 8MP resolution with 25fps
- Deeplight for optimal performance in low-light situations
. - WizMind technology for intelligent detection shapes
- Image optimisation based on AI
- IP67 Dust and water-resistant
- IK10 vandaalbestendig
- Built-in microphone
- Integrated mounting box
- SD card slot for Micro-SD up to 512GB
- Suitable for PoE, ePoE and 12VDC
Specificaties:
| Aantal beeldsensoren: | 1 |
| Optisch/Thermisch: | Optisch |
| Beeldsensor: | 1/1.8 |
| Resolutie: | 3840 x 2160 |
| Aantal pixels: | 8MP |
| Minimum illumination strength (in colour): | 0.0008 Lux |
| Minimum illumination strength (LED on (black/white)): | 0 lux |
| Verlichting: | IR |
| LED afstand: | to 50m |
| LED On/Off (Day/Night): | Auto/Manual |
| Aantal LED(s): | 2 LED |
| Sluitersnelheid: | 1/3s ~ 1/100,000s |
| Ruisonderdrukking: | 3DNR |
| Lens type: | Fixed lens |
| Iris: | Fixed Iris |
| Brandpuntsafstand: | 2.8mm |
| Maximale opening: | F1.6 |
| Horizontale openingshoek: | 110° |
| Verticale openingshoek: | 57° |
| Focusbediening: | Auto/Manual |
| Stream mogelijkheid: | 4 streams |
| Video compressie: | H.264, H.264 +, H.264 B, H.264 H, H.265, H.265 +, MJPEG |
| Frames per second (Main Stream): | 25fps @3840× 2160 |
| 2de stream: | 25fps D1: 720 x 576 |
| 3de stream: | 25fps @1920 x 1080 |
| 4de stream: | 10fps @1280 x 720 |
| Bitrate: | H.264: 32 kbps-16384 kbps, H.265: 12 kbps-13568 kbps |
| Dag/Nacht: | Auto (filter), Colour, Black/White |
| Lichtcompensatie: | BLC, HLC, WDR(120dB) |
| Bewegingsdetectie: | Aan/Uit |
| | |
| Slimme Functies: | AI Face Capture/Attributes |
| | AI People Counting |
| | AI Motion detection |
| | AI Video Metadata |
| | Audio Exception Detection |
| | Face Detection |
| | Heatmap |
| | Object Abbonded/Missing |
| Smart IR: | Yes |
| Smart LED: | Auto/Manual |
| Defog: | Yes |
| Privacy-maskering: | Yes |
| Ingebouwde microfoon: | Yes |
| Audio ingang: | No |
| Audio Uitgang: | No |
| Audio Compressie: | G.711 A, G.711 MU, G.723, G.726, PCM |
| Speaker: | No |
| Ethernet: | RJ-45 (10/100 Base-T) |
| Storage option SD card: | Yes |
| Maximum Storage Capacity SD card: | 256GB |
| Alarm: | Yes |
| Number of channels in: | 1x Max, 5mA 3V-5 VDC |
| Number of channels out: | 1x Max, 300mA 12 VDC |
| inclusief voeding: | No |
| Voeding: | 12V DC, PoE (Type IEEE 802.3af), E-PoE |
| Max Verbruik: | Base: 4.1 W (12 VDC); 5.2 W (PoE) Max (H.265 + WDR+ Intelligence on + IR on): 6.8 W (12 VDC); 8.8 W (PoE) |
| Werktemperatuur: | -40°C ~ +60°C |
| Waterdichtheid: | IP67 |
| Vandaalbestendig: | IK10 |
| Materiaal | Metal |
| Diameter | Ø122mm |
| Hoogte | 94mm |
| Gewicht: | 0.712 Kg |
