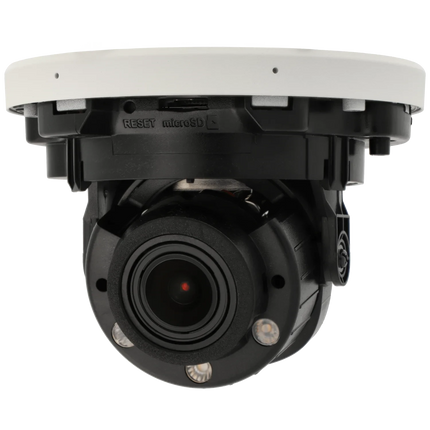

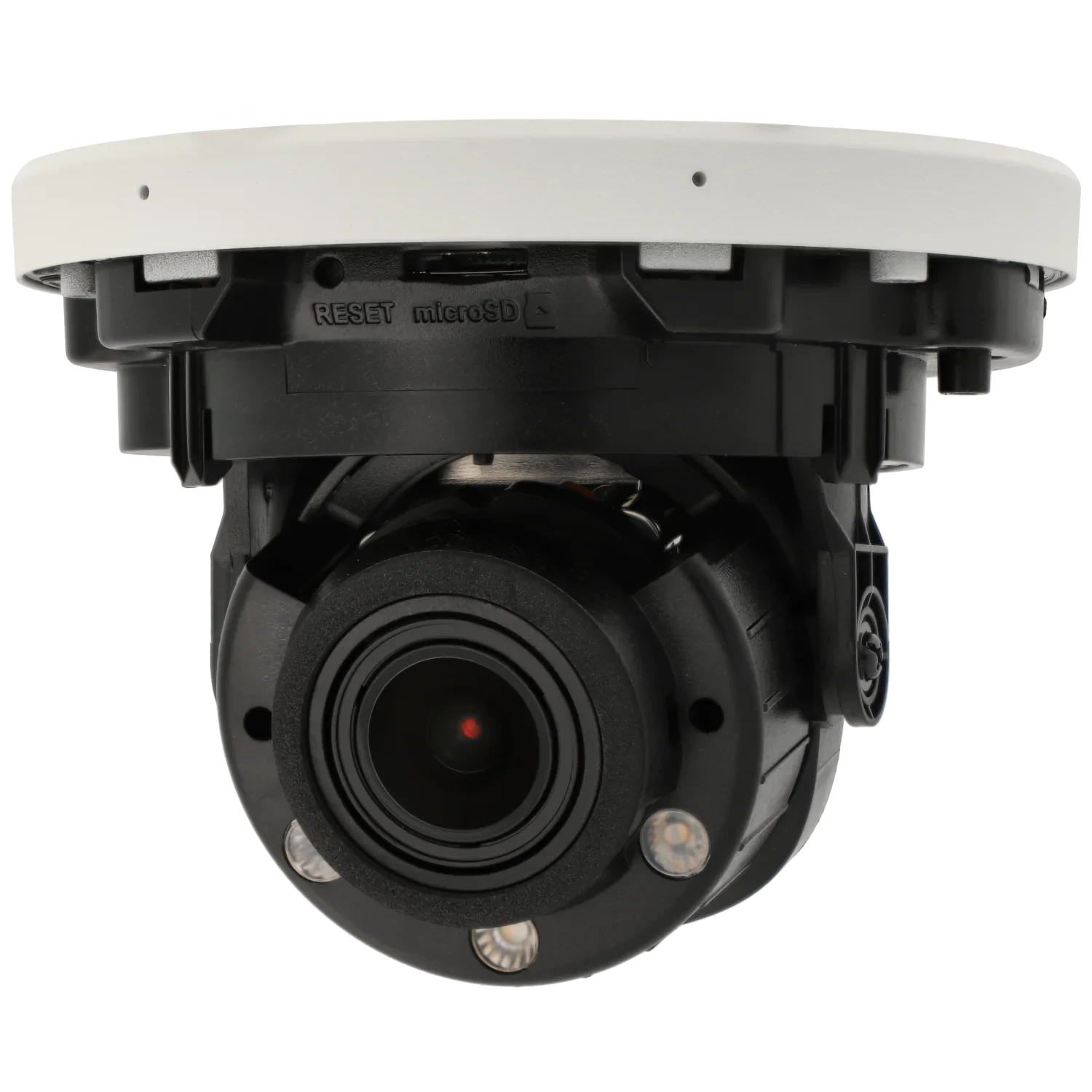

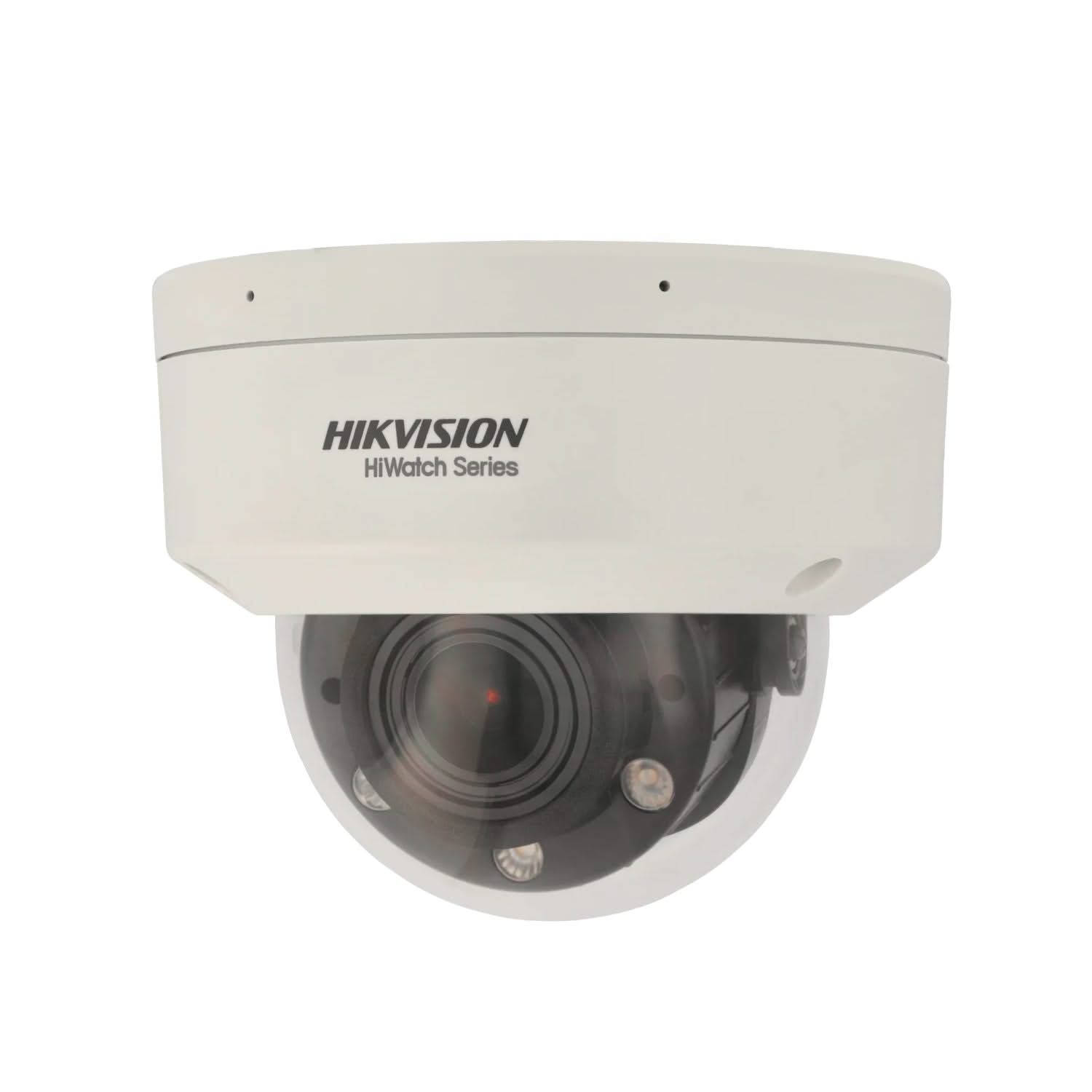

Hikvision HWI-D640HA-LZU, 4MP Dome camera, optical zoom 2.8mm-12mm, PoE, Smart Hybrid Lights, 2x Mic.

The Hikvision HiWatch HWI-D640HA-LZU is a rugged outdoor dome IP camera with 4 MP resolution, varifocal motor lens and dual light/Smart Hybrid Light illumination. This camera is designed for continuous surveillance, with good low-light performance, weather and vandalism protection, plus smart detection functions.

Key features.

• Resolution: 4 megapixel (2560 × 1440)

• Image sensor: 1/3″ progressive scan CMOS

• Minimum illumination: color 0.005 Lux (F1.6, AGC on); black and white: 0 Lux with IR illumination on

• Lens: varifocal motorized lens 2.8-12 mm

• Angle of View (Field of View): horizontally approx. 96.7° to 29.7°; vertically approx. 51.7° to 16.7°; diagonally approx. 114.3° to 34° depending on lens position

• Night lighting/illumination in poor light: Smart Hybrid Light with IR as well as white light, range up to approx. 30 meters

• Wide Dynamic Range (WDR): 120 dB, for better contrast in backlight and changing light conditions

• Video compression & streams: supports H.265+, H.265, H.264+, H.264 (also MJPEG on sub-streams); multiple image streams (main & sub) with different frame rates depending on resolution

• Detection functions: Motion Detection 2.0 with classification of people and vehicles, privacy masks, region of interest (ROI) for main stream

• Audio: built-in microphone for sound recording/monitoring

• Storage: microSD card slot up to approx. 512 GB local memory possible

• Housing & protection: IP67 (water & dust proof), IK08 (vandal resistant)

• Power options: 12 V DC or via PoE (IEEE 802.3af)

• Temperature range: operates between approximately -30 °C and +60 °C; suitable for outdoor use in various weather conditions

• Dimensions & weight: diameter ~121.5 mm, height ~97.6 mm; weight approx. 540 g net, approx. 740 g including packaging

Advantages

• Good image quality even in low light, thanks to ~0.005 Lux + IR/white light combination.

• Flexible viewing angle through motor zoom lens (2.8-12 mm) to zoom in/out depending on situation.

• Strong protection against weather and vandalism (IP67, IK08).

• Efficient compression technology saves storage space and bandwidth (H.265+).

• Smart detection (people/vehicles) reduces chance of false alarms.


Specifications:

• Image sensor & resolution - 1/3" Progressive Scan CMOS; up to 4 MP (2560 × 1440)

• Minimum Illumination - Color: 0.005 Lux (F1.6, AGC on); Black/White: 0 Lux with IR illumination on

• Lens / Optics - Varifocal motor lens 2.8-12 mm; fixed iris; F1.6

• Field of view (FOV) - H: 96.7° → 29.7° - V: 51.7° → 16.7° - D: 114.3° → 34°

• Illumination / Night function - Smart Hybrid Light (IR + white light) up to 30 m; day/night with IR-cut filter

• WDR / Image Enhancement - 120 dB true WDR, BLC, HLC, 3D-DNR; adjustable image parameters

• Video streams / compression -

  • Main stream: 4 MP @ 20 fps, 1080p/720p higher fps possible

  • Sub-streams: e.g. 720P, VGA, Q720P

  • Compression: H.265+, H.265, H.264+, MJPEG

  • Bit rate: CBR / VBR

• Audio - Built-in microphone; compression formats: G.711, G.722.1, G.726, PCM, AAC-LC

• Detection / Intelligence - Motion Detection 2.0 (human/vehicle), privacy masks (4), Region of Interest (ROI)

• Storage - MicroSD/SDHC/SDXC up to 512GB

• Network / Interface - RJ-45 10/100 Mbps; protocols: TCP/IP, HTTP, RTSP, IPv6, ONVIF (S/G/T), SDK, ISAPI; up to 32 users; up to 6 live streams simultaneously

• Power/Power - 12 VDC ±25% or PoE (802.3af); consumption approx. 9.6 W (12 V) / 12 W (PoE)

• Housing / Protection - IP67 dust & waterproof; IK08 vandal resistant; metal base, plastic cover

• Temperature & Environment - Operating temperature: -30 °C to +60 °C; humidity ≤95% (non-condensing)

• Dimensions & weight - Ø 121.5 mm × 97.6 mm; net 540 g, gross 740 g

• Mechanical adjustability - 3-axis: Pan 0°-355°, Tilt 0°-70°, Rotation 0°-355°
