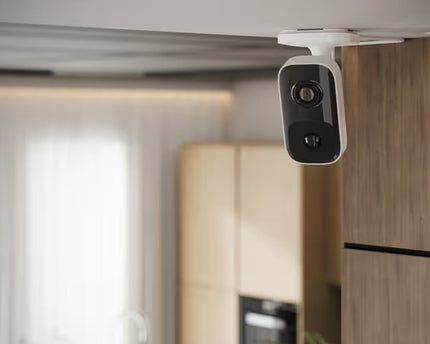

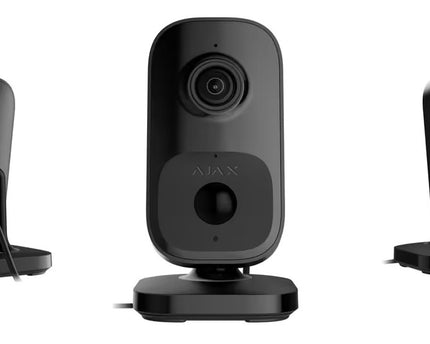

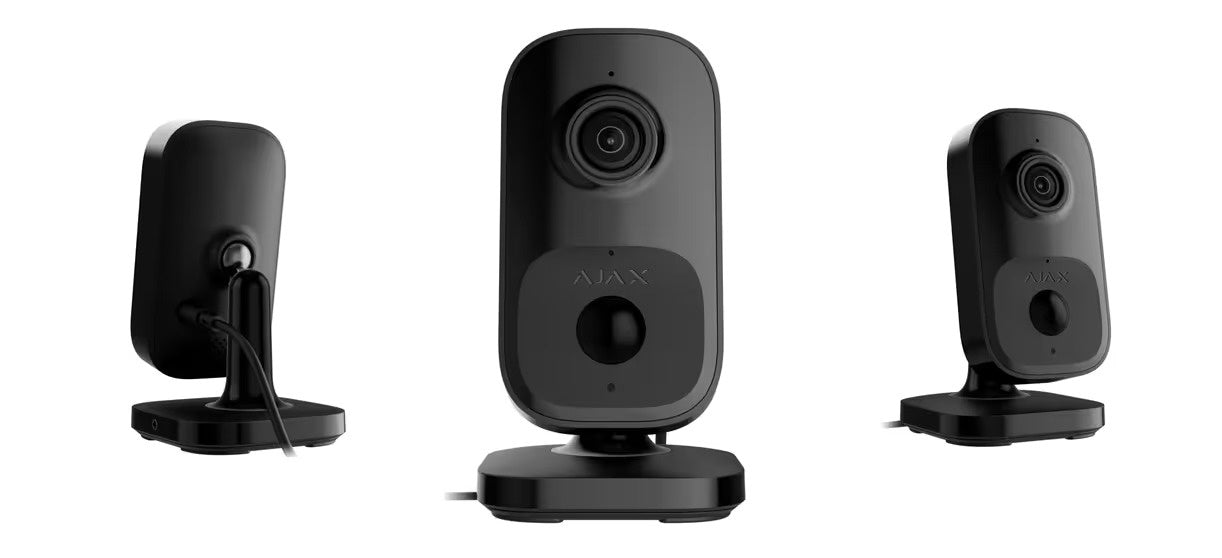

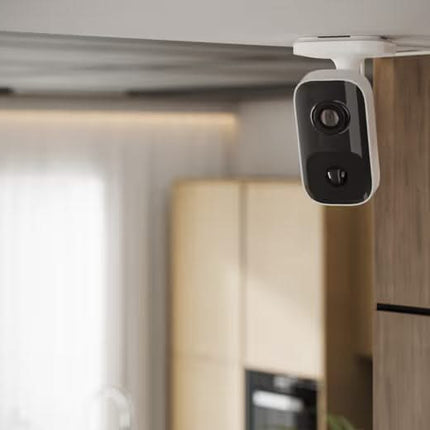

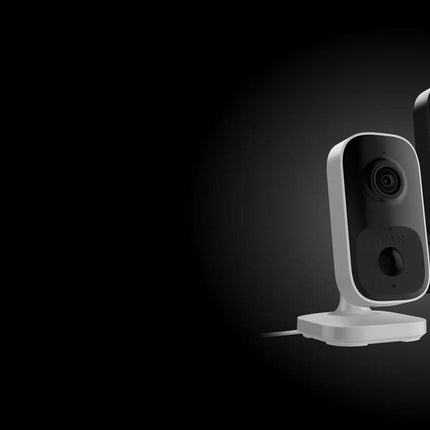

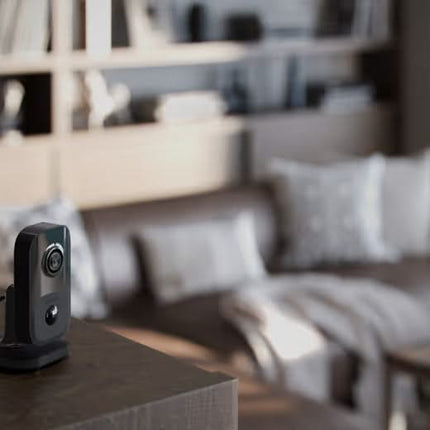

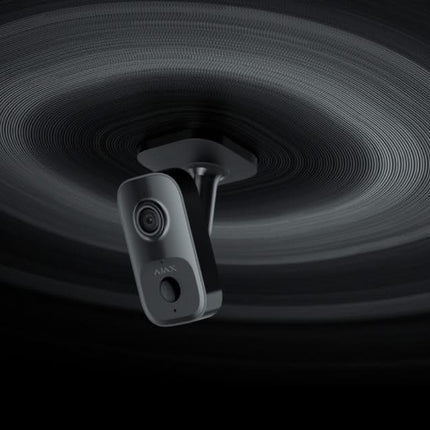

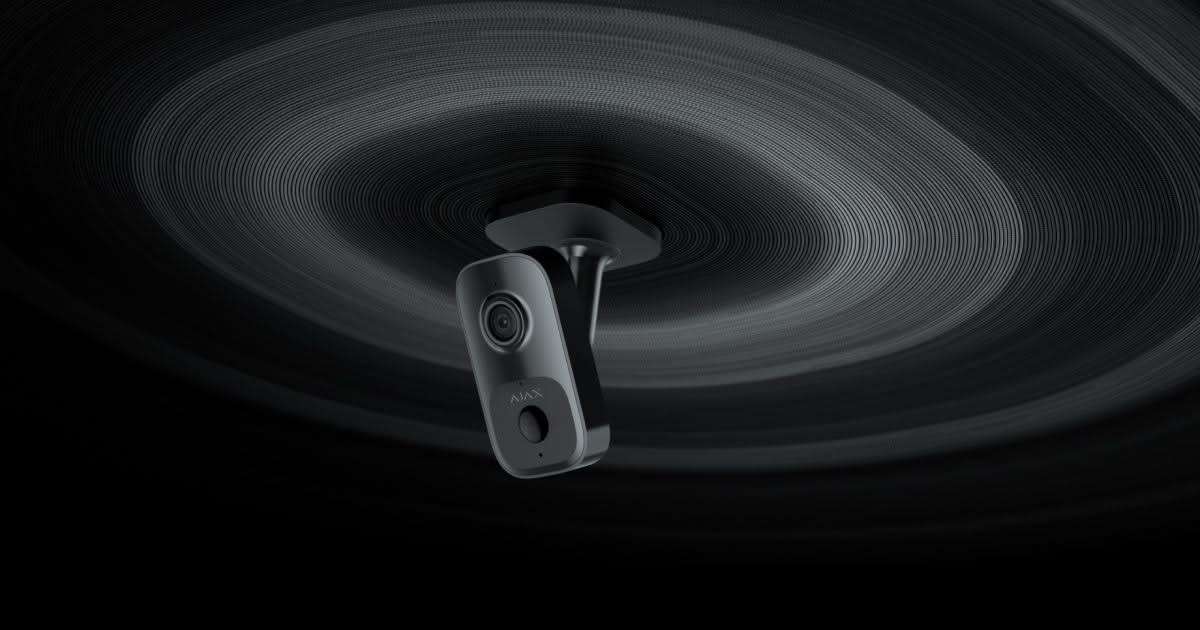

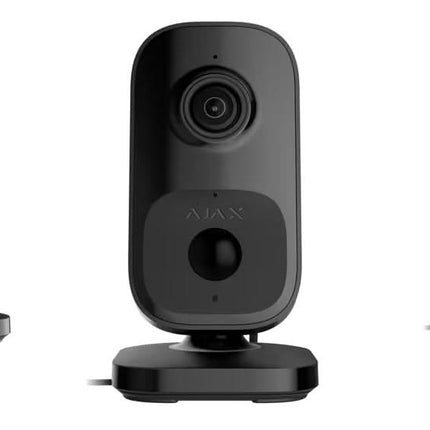

IndoorCam, Wi-Fi camera with PIR motion detector and built-in AI Technology

Professional security and AI.

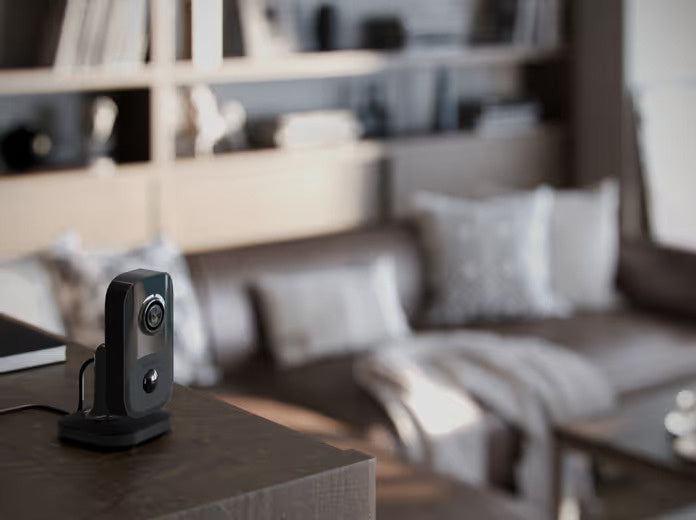

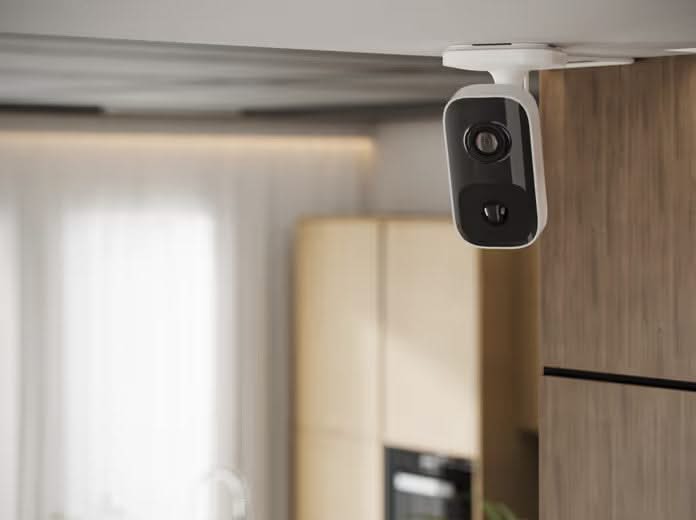

IndoorCam combines the convenience of Wi-Fi cameras with advanced security features. The fallback communication channel with an Ajax hub ensures that the facility is never out of sight, even if Wi-Fi fails. Equipped with a PIR sensor and built-in AI, the device accurately detects movement and recognises people, animals and vehicles. Users can always get a clear view of indoor activity in excellent quality thanks to the IndoorCam's wide-angle HDR camera.

Live view, instant call
Stay connected to your property and control it anywhere, day or night. With HD video streaming and two-way audio, you can instantly see, hear and react to any situation with your smartphone. From scaring off unwanted visitors to monitoring your space, IndoorCam combines professional surveillance with easy-to-use functionality.

Extended Wi-Fi range for no delays and crashes

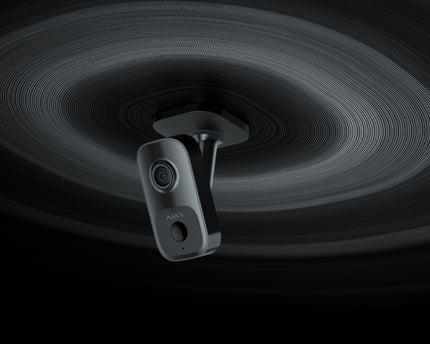

Forget home security cameras that disconnect from the Wi-Fi network at the worst possible time. IndoorCam is designed to be less sensitive to radio interference and maintain a stable connection up to 500 metres in line-of-sight - five times further than competing solutions. This extended range offers more installation flexibility, as installers no longer need to place the Wi-Fi router directly at the camera. For users, it ensures seamless communication and uninterrupted streaming when needed.

Reliable connection via Wi-Fi
Connecting IndoorCam to an Ajax hub provides a reliable backup communication channel. If the Wi-Fi connection is lost, the camera continues to send events, alarms and photos using Ajax's secure Jeweller and Wings radio protocols. With a communication range of up to 1,700 metres with a hub and robust Ajax anti-sabotage measures, IndoorCam remains an active part of the intrusion protection system, keeping users informed and in control.

Specifications:

• Videostream:

  • Camera with 4 MP CMOS sensor:
  • Solution up to 2560 × 1440 px.

• Camera viewing angles:

  • Horizontaal: 110°.
  • Vertical: 60°.

• Videoprotocol:

  • JetSparrow (fast and encrypted peer-to-peer video protocol developed by Ajax Systems):

• Opslagopties:

  • Ajax Cloud:
  • NVR (Network Video Recorder).

• Videocodec:

  • H.264>

• Dynamisch bereik:

  • HDR for improved accuracy of details in light and dark scenes.

• Communicatiekanaal:

  • Wi-Fi (802.11 b/g/n):
  • 2.4 GHz, up to 2 Mbit/s for the 2K video channel.

• Communication technologies from Jeweller and Wings:

  • Wireless communication technologies for commands, alarms, events and photo verifications:
  • Backup communication channel when the device is added to the hub.

• Belangrijkste kenmerken:

  • Two-way communication for clear and loud speech.
  • Motion detection via built-in PIR sensor and software-based image frame analysis.
  • Object detection with AI for people, pets and vehicles.
  • Smart IR illumination up to 8 m with automatic intensity adjustment.
  • Visual verification of Ajax alarms via selected cameras.

• Microfoon:

  • For two-way communication and audio recording:

• Audio codec and audio processing:

  • G722 audio codec:
  • Always active noise reduction and echo cancellation.

• LED-indicatie:

  • Indicates the current status of the device:

• PIR-detectie:

  • Sensitive elements: 1 × PIR sensor:
  • Motion detection distance: up to 4 m (depending on sensitivity settings).
  • Motion detection angle: Horizontal: 110°; Vertical: 60°.
  • Sensitivity: 3 levels, adjustable by PRO users or users with administrator rights.

• Installatie-aanbevelingen:

  • Only for indoor use:
  • Do not install in direct sunlight to prevent overheating.

• Sabotagebescherming:

  • Mounting screw for fastening:
  • mTLS encrypted connection for data protection.
  • Authentication via Ajax Cloud (without local access rights).
  • Safe automatic firmware update via OTA signature verification.
  • Privacy through distribution of user access rights in mobile apps and PRO Desktop.

• Detection of communication loss:

  • Wi-Fi: adjustable from 30 s.
  • Jewelry/Wings: after 36 s.

• Stroomvoorziening:

  • Power supply: 12 V⎓ ± 20%, 1 A.
  • Current consumption of device:To be determined.

• Behuizing:

  • Dimensions: 128 × 74 × 76 mm
  .
  • Weight: 235 grams.
  • Operating temperature: from 0 °C to +40 °C.
  • Operating humidity: up to 90 per cent without condensation.
  • Protection class: IP20.

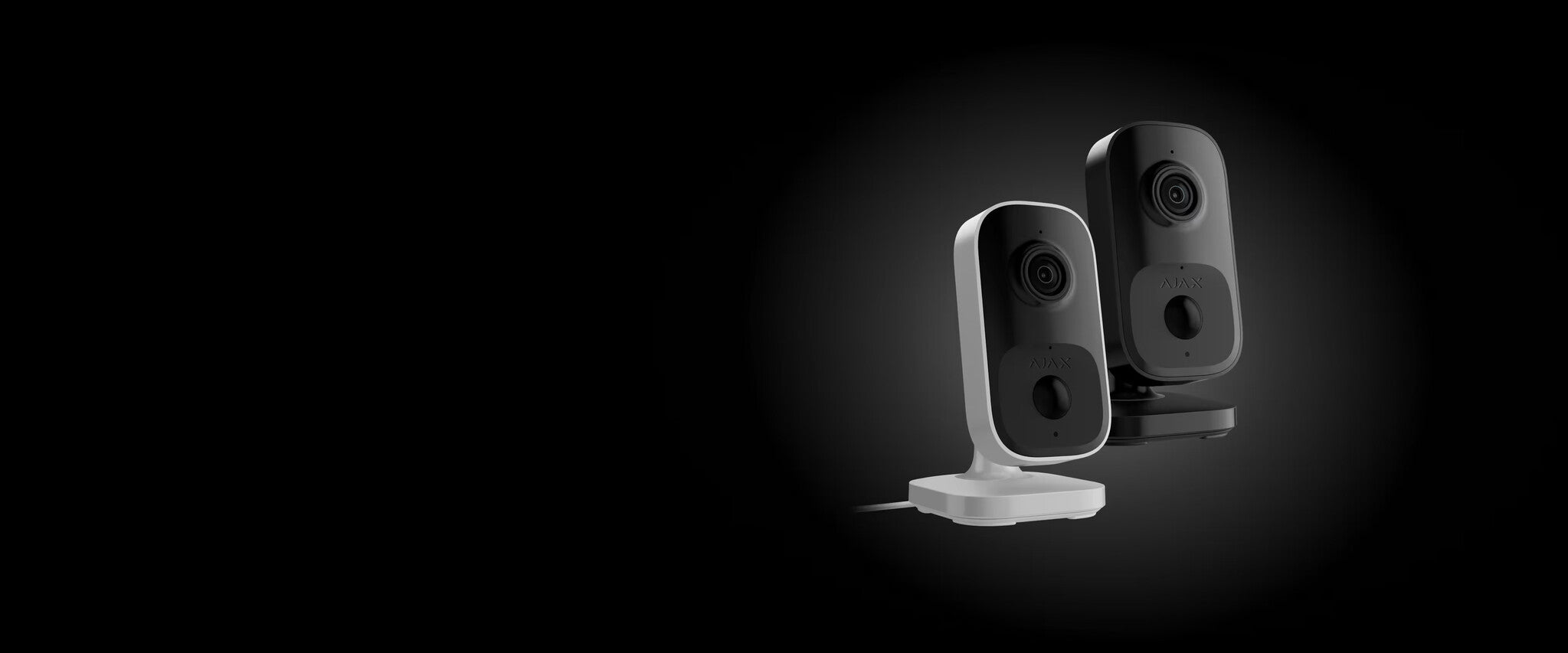

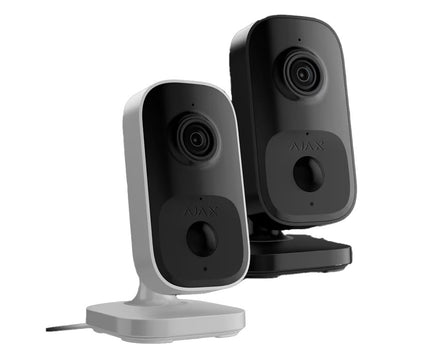

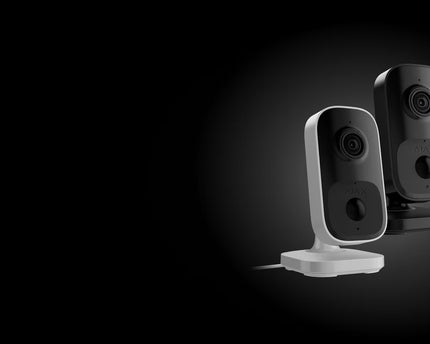

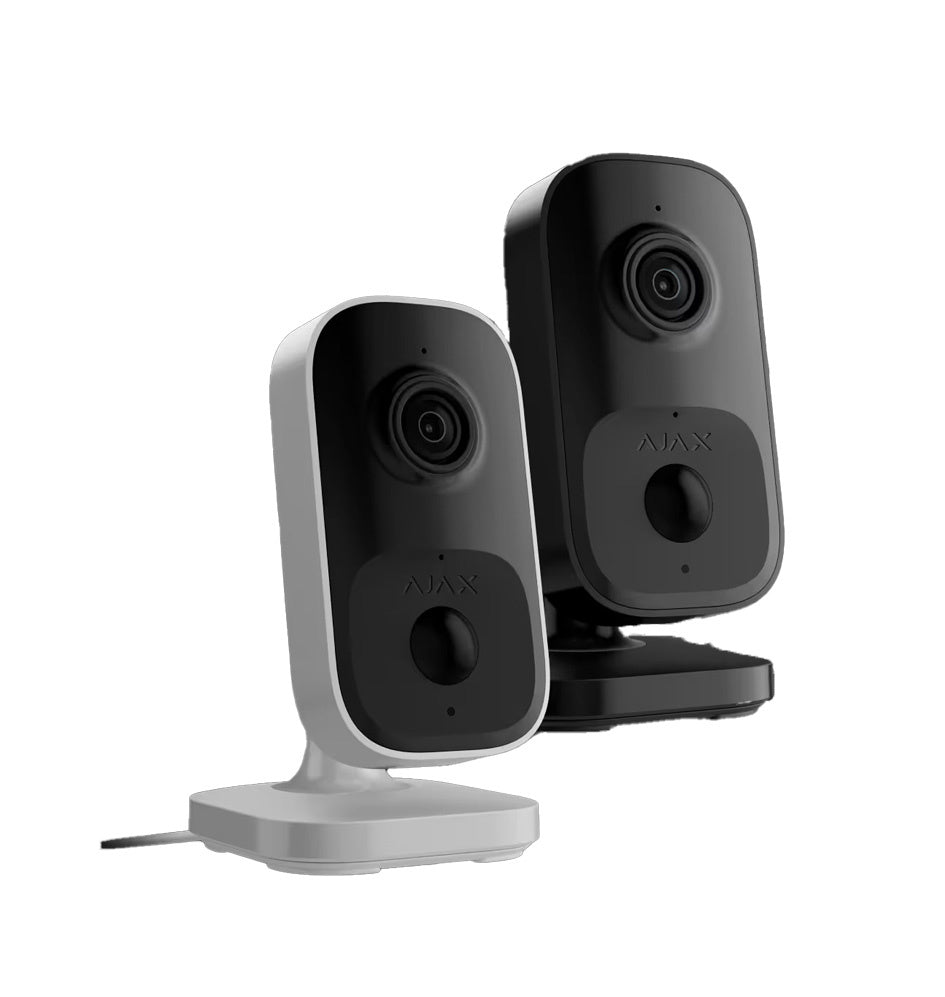

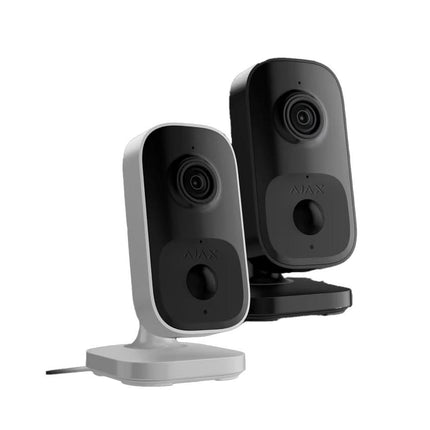

• Kleuren:

  • Black (RAL 9005) and White (RAL 9003).
