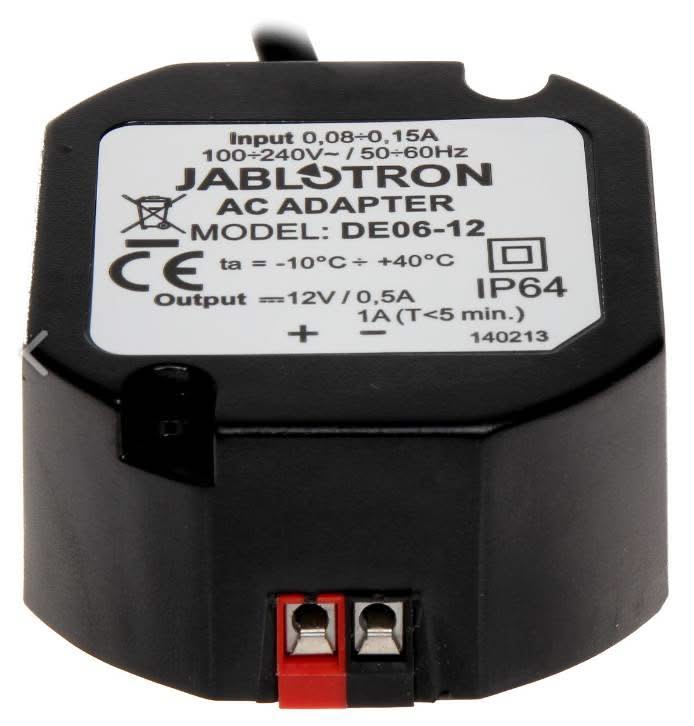

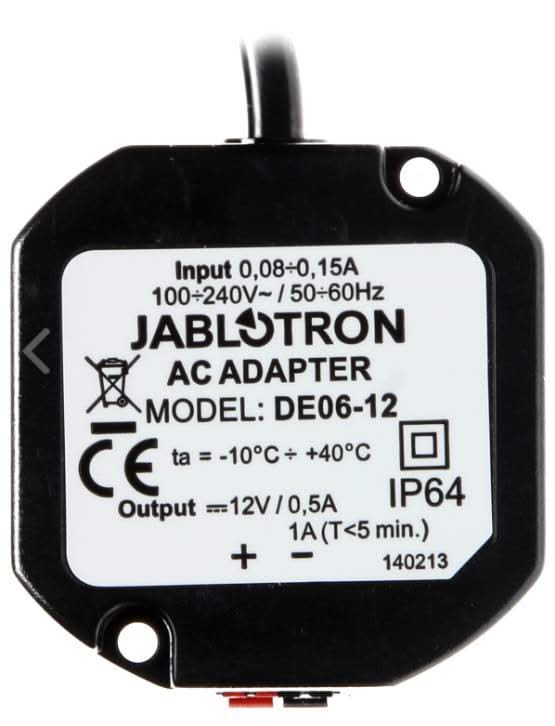

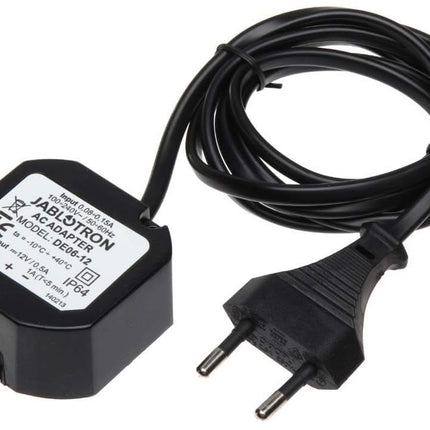

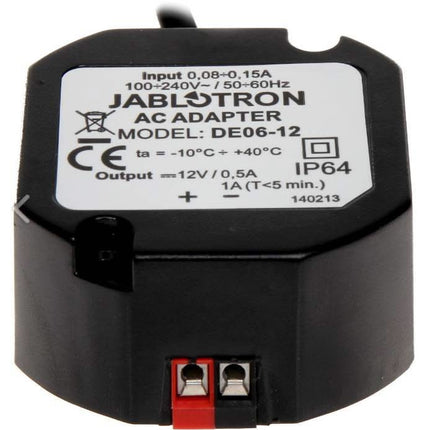

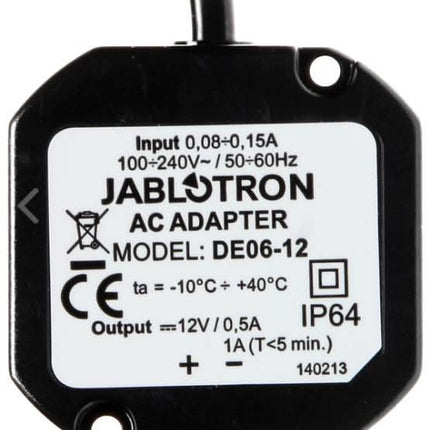

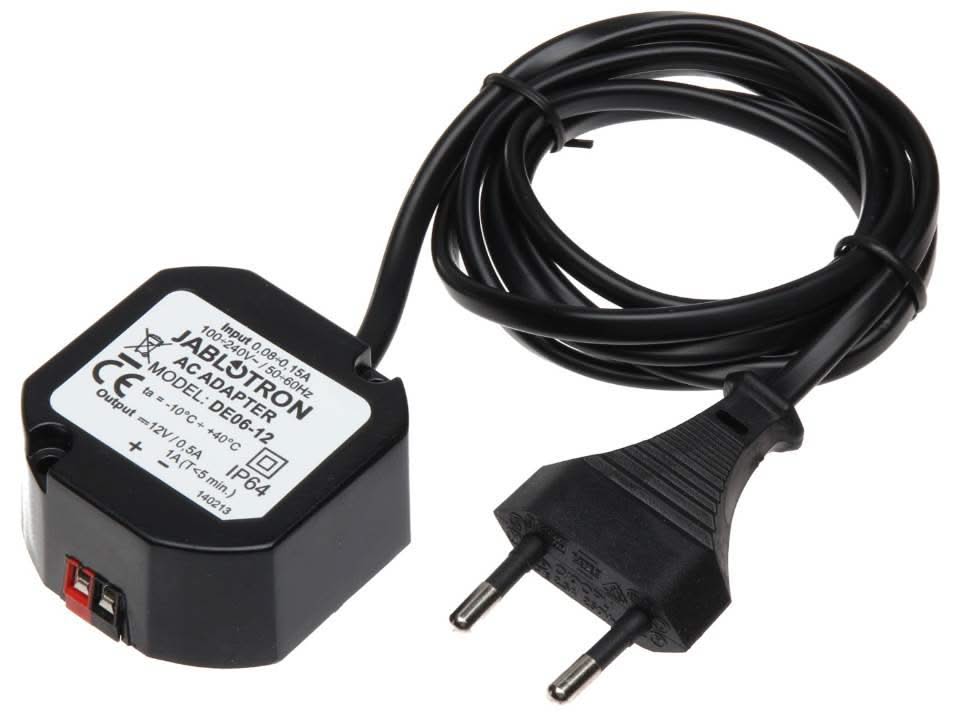

    Jablotron DE06-12 Power Supply12V / 0.5A



    The Jablotron DE06-12 Power Supply12V / 0.5A is intended for powering a wireless control panel and also for powering other 12V DC devices such as intercom entry panels, electric locking plate, IP and Analogue 12volt cameras


    The compact size of the housing allows the module to be placed in a standard electrical installation box for concealed installation under wall-mounted Jablotron  products, such as the elements mentioned above. The screw holes for M3 screws are also useful for installation in typical fuse/switches where fixing is required.

    - supply voltage 100 ~ 240VAC, class protection II
    - output voltage 12V DC (± 2%)
    - output current 500 mA
    - peak output current T <5 min 1000 mA
    - output power 12W max.
    - short-circuit and overload protection
    - housing IP64
    - size 50x48x25 mm
    - input cables length 110 mm (230 V), diameter 1.3 mm (16 AWG)
    - operating conditions according to EN 50131-1 II. environmental class
    - operating temperature -10°C to +40°C
    - complies with EN 50130-4, EN 55022, EN 60950-1
