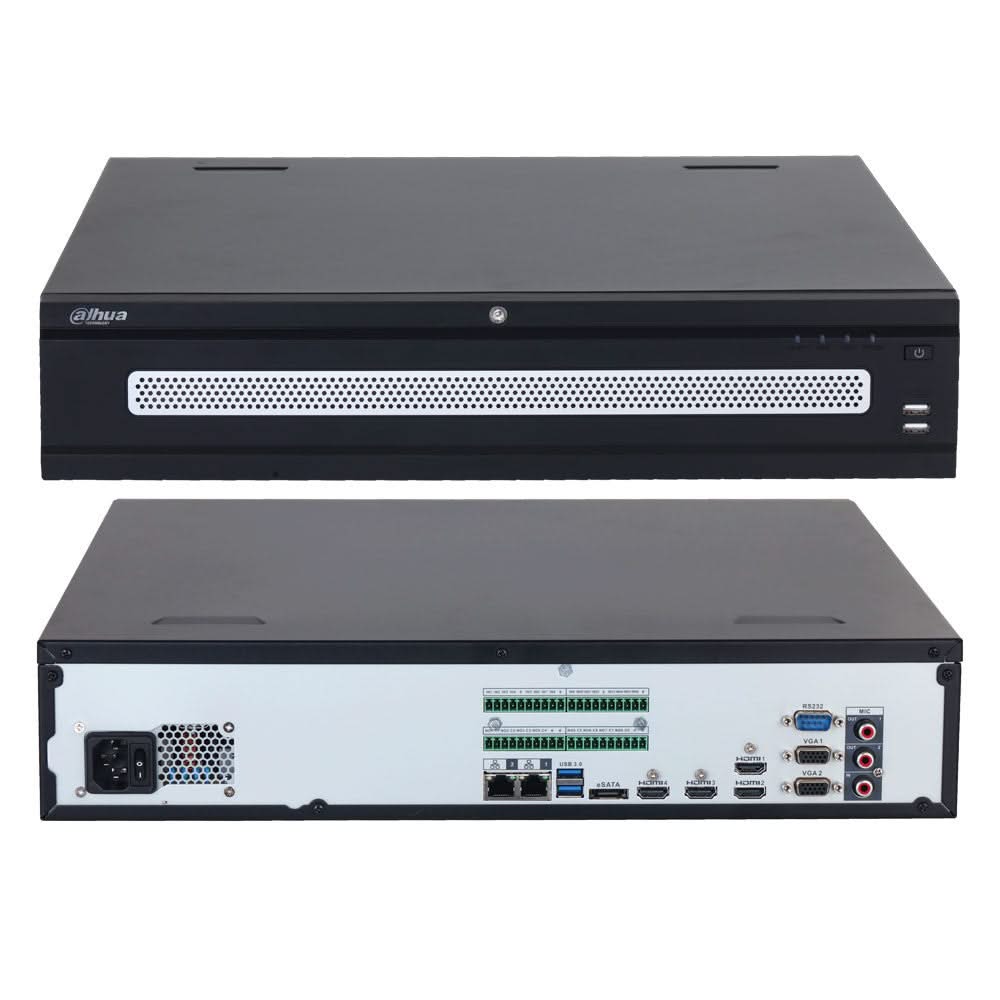

NVR608H-64-XI, 2x LAN, No PoE, RAID, Suitable for 64 IP cameras
The NVR608-64-XI series is a powerful and advanced NVR that is perfect for demanding video surveillance applications. The NVR is equipped with built-in AI technology and offers redundant recording technology. This means it is capable of recording high-resolution video using deep-learning algorithm and video metadata technology.
This NVR offers advanced features such as accurate face recognition and perimeter security. But it also extensively supports Dahua AI cameras and can serve as an ANPR or face database
, for example.
The NVR608-64-XI is a standalone solution for large and demanding projects and can be used perfectly well as an alternative or complement to a video management system.
Eigenschappen:
- Suitable for camera resolutions up to 32MP
- 4x 4K HDMI, 2x VGA
- Simultaneous mode:
- max resolution of VGA1 and VGA2 is 1080p,
max resolution of HDMI1 and HDMI2 is 4K
max resolution of HDMI3 is 8K
max resolution of HDMI4 is 1080p
- Independent mode:
- VGA1 and HDMI1 are equal to each other
VGA2 and HDMI2 are equal to each other
max resolution of VGA1 and VGA2 is 1080p,
max resolution of HDMI1, HDMI2 and HDMI3 is 4K
max resolution of HDMI4 is 1080p
- Sufficient decoding capacity for real-time display of 64x D1
- Support AI functions such as AI Perimeter, SMD, metadata registration and face detection
- Search based on object classification or face properties
- Back-end WizMind technology
- Space for 8 hard drives up to 16TB per drive
- Ondersteunt RAID 0/1/5/6/10
Specificaties:
| Camera kanalen: | 64 |
| Interface: | 4x HDMI, 2x VGA |
| Gelijktijdige weergave: | AI disabled:
2 channels with 32MP @25fps;
2 channels with 24MP @25fps;
4 channels with 16MP @25fps;
5 channels with 12MP @25fps;
8 channels with 8MP @25fps;
12 channels with 5MP @25fps;
16 channels with 4MP @25fps;
32 channels with 1080p @25fps;
64 channels with D1 @25fps.
AI enabled:
1 channel with 32MP @25fps;
1 channel with 24MP @25fps;
2 channels with 16MP @25fps;
2 channels with 12MP @25fps;
4 channels with 8MP @25fps;
6 channels with 5MP @25fps;
8 channels with 4MP @25fps;
16 channels with 1080p @25fps;
64 channels with D1 @25fps. |
| Compressie: | Smart H.265, H.265, Smart H.264, H.264 |
| Resolutie: | 32MP, 24MP, 16MP, 12MP, 8MP, 5MP, 4MP, 1080p, 720p, D1 |
| Inkomende bandbreedte: | AI disabled: 1024Mbps, AI enabled: 640Mbps |
| Uitgaande bandbreedte: | AI disabled: 1024Mbps, AI enabled: 512Mbps |
| Gesynchroniseerd afspelen: | AI disabled:
2 channels with 32MP @25fps;
2 channels with 24MP @25fps;
4 channels with 16MP @25fps;
5 channels with 12MP @25fps;
8 channels with 8MP @25fps;
12 channels with 5MP @25fps;
16 channels with 4MP @25fps;
32 channels with 1080p @25fps;
64 channels with D1 @25fps.
AI enabled:
1 channel with 32MP @25fps;
1 channel with 24MP @25fps;
2 channels with 16MP @25fps;
2 channels with 12MP @25fps;
4 channels with 8MP @25fps;
6 channels with 5MP @25fps;
8 channels with 4MP @25fps;
16 channels with 1080p @25fps;
64 channels with D1 @25fps. |
| Ethernet: | 2x 10/100/1000/2500Mbps |
| PoE poorten: | No |
| Inclusief HDD: | No |
| Aantal poorten: | 8x |
| Max number of TB per port: | 16TB |
| RAID: | 0, 1, 5, 6, 10 |
| USB: | 4x |
| Alarm in: | 16x |
| Alarm uit: | 8x |
| Audio in: | 1x |
| Audio uit: | 2x |
| RS-232: | 1x |
| RS-485: | 1x |
| Voeding: | 100-240 VAC, 50-60 Hz |
| Verbruik: | <18W (without HDD) |
| Werkomgeving: | -10 to +55° |
| Afmeting: | 440.0 mm × 458.4 mm × 94.9 mm |
