Reolink 4K 8MP security IP camera captures videos and images in full 3840x2160 resolution at 20 frames per second, providing an ultra-clear and ultra-smooth viewing experience. Plus, the built-in microphone gives you every audio and visual detail when it matters.
Thanks to 18 powerful infrared LEDs and advanced 3D-DNR technology, the 4K IP camera can capture crisp and clear video at night.
The PoE security camera in the kit uses a single Ethernet cable for both data transmission and power. No complicated wiring. In addition to streamlining installation, the PoE capability ensures a reliable and lag-free network connection.

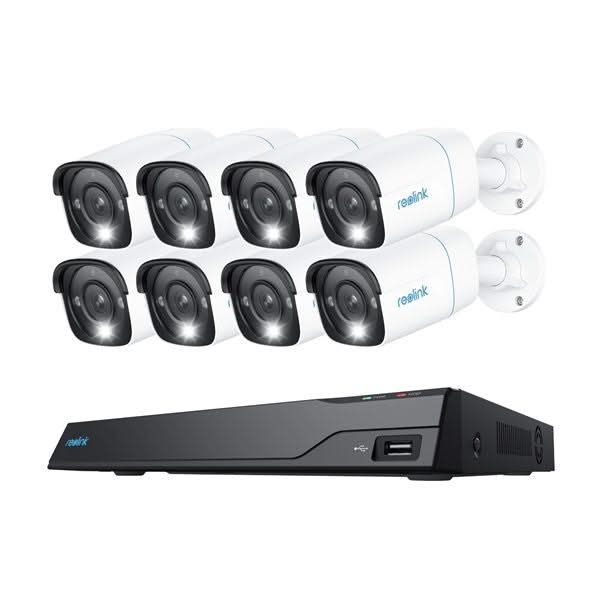

All 8 cameras can continuously record to the pre-installed 4TB hard drive in the NVR. You can replay recordings throughout the day - not just motion clips - to capture everything you need.
This 4K security camera system can be expanded to a set of 16 cameras with Reolink IP cameras - bullet, dome or PTZ; 16 MP, 12 MP, 8 MP, 5 MP or 4 MP - to cover your entire home, store or factory with no dead spots.
Packed in a rugged aluminum housing, the waterproof and rugged cameras protect you inside and out, in rain and shine, now and in the future.
Stay connected to your home or business from anywhere on your cell phone, tablet or computer. Watch live streaming, replay important moments or monitor motion alerts with just a few clicks.
Specifications:

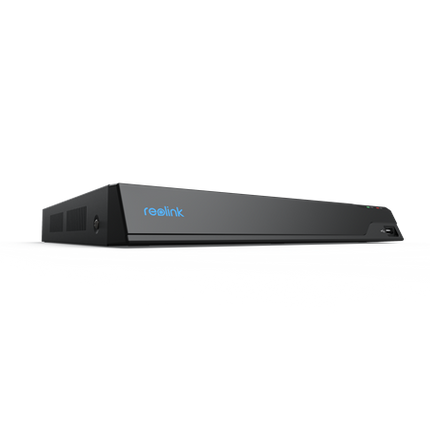

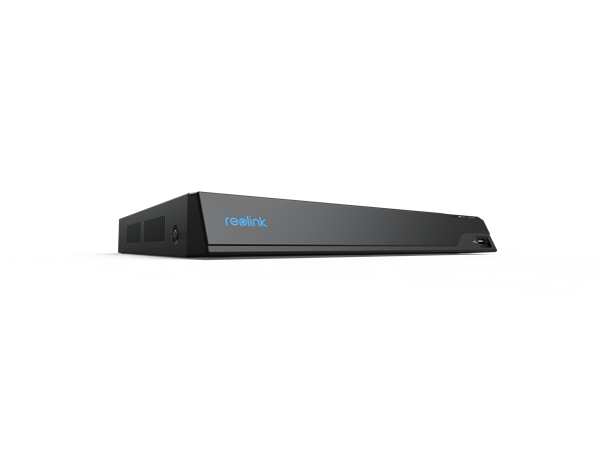

| Model: Reolink NVS16-8MB8 |
| Model | Model NVR | NVS16 |
| Product Name | 16-channel 12MP PoE NVR |

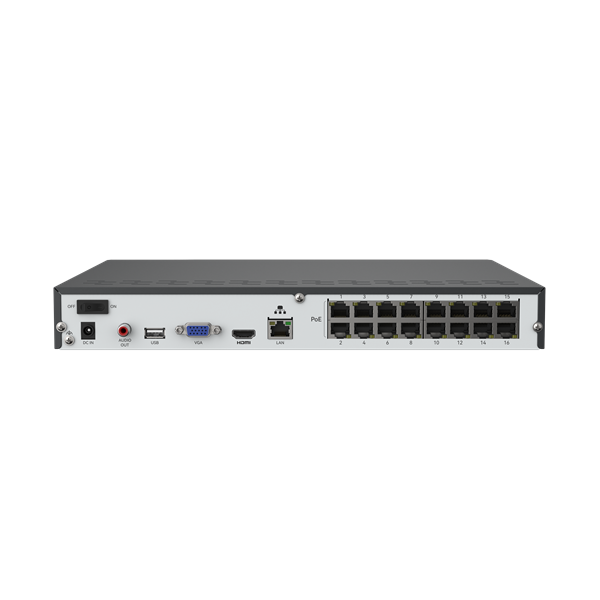

| External Interface | Video out | 1 VGA, 1 HDMI |
| Audio port | 1 audio out channel, RCA |
| USB ports | 2x USB 2.0 |
| Ethernet ports | 1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface for LAN/WAN
16, RJ-45 10/100 Mbps Self-Adaptive PoE Ethernet Interface for IP Cameras |
| Video / Audio output | Video input | PoE IP camera x 16 |
| Video output | HDMI: 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768
VGA: 1920x1080, 1280x1024, 1280x720, 1024x768 |
| Audio input | Cameras with built-in microphone |
Recording
| Live View/Playback | 12MP/8MP/5MP/4MP/3MP/1080P/720P |
| Video Format | H.265, H.264 |
| Synchronous playback | 1-4 channels (supports 1-channel playback if viewing in resolution of 8MP or higher) |
| Recording modes | Person detection, vehicle detection, pet detection, motion-activated detection, 24/7 |
| Storage | Internal HDD | 2 x SATA interface for 2 HDDs (1x 4TB HDD pre-installed) |
| Capacity | Up to 12TB (max 6TB for each HDD) |
| External HD | - |
| PoE | Max power per port | 25W |
| Standard | IEEE 802.3af/at |
| Network | Network Protocol | HTTPS, TCP/IP, UDP, DHCP, P2P, UPNP, RTMP, SMTP, SSL/TLS, DNS, DDNS, NTP |
| Browser | Edge, Firefox, Chrome, Safari |
| OS | PC: Windows, Mac OS; SmartPhone: iOS, Android |
| Max users | 20 users (1 admin and 19 user accounts); supports up to 12 video streams simultaneously (10 substreams and 2 mainstreams) |
General
| Working environment | Temperature: -10C~+45C, Humidity: 10%~90% |
| Current | DC 48~54V |
| Power Consumption | <10W (without HDD&PoE) |
| Dimension(mm) | 330 x 45 x 285mm |
| Weight (without HDD) | 1.8kg |
| Warranty | 2 years |

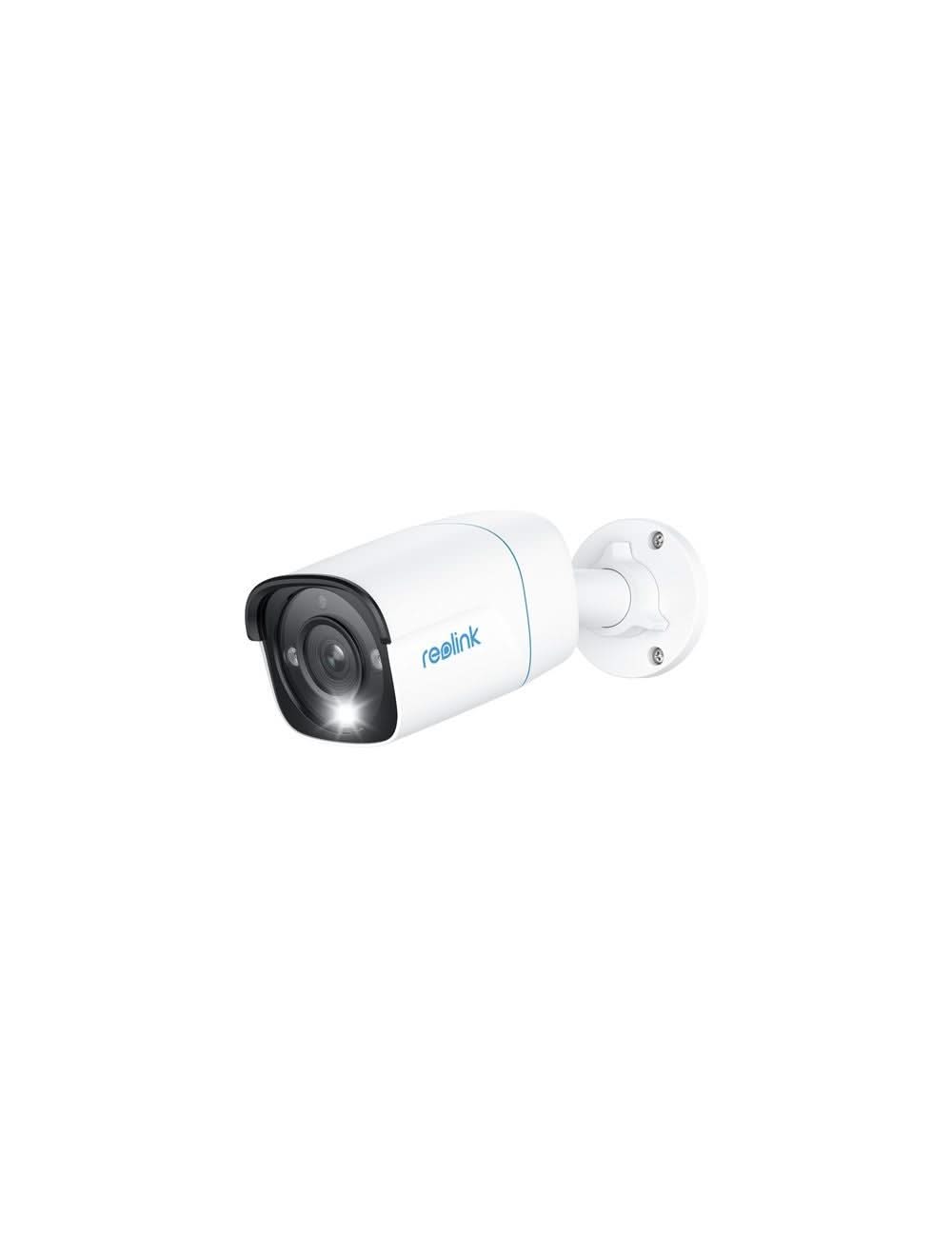

| Camera model: P330 |
Video & Audio
| Sensor | 1/2.49" CMOS Sensor |
| Video Resolution | Standard: 3840 x 2160 (8 Megapixel) @25fps |
| Lens | f=2.8mm fixed; F=2.0 with IR cut |
| Video format | H.265 |
| Viewing angle | Horizontal: 105°, Vertical: 56° |
| Night vision | Up to 30 meters (LED: 2pcs/1.8W/850nm) |
| Spotlight | 1pcs/4.3W/6500K/700lum |
| Day/night mode | IR cut filter with auto switching |
| Audio | Built-in microphone |
Power
| PoE | IEEE 802.3af, 48V Active |
| Power supply | DC12V-1A, <12W |
| Software features | Frame Rate | Main Stream 2fps - 25fps (default 25fps)
Sub Stream 4fps - 15fps (default 10fps) |
| Code rate | Main Stream: 2048Kbps x 8192Kbps (default 6144Kbps)
Sub Stream: 64Kbps x 512Kbps (default 256 Kbps) |
| Browser | Edge, Chrome, Firefox, Safari |
| OS | PC: Windows, Mac OS; Smartphone: iOS, Android |
| Smart alarms | Motion, person, vehicle and pet detection |
| Protocols | HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P |
| Users | 20 users (1 admin and 19 user accounts); supports up to 12 video streams simultaneously (10 substreams and 2 mainstreams) |
| Works with | Google Assistant, Reolink NVR |
| Recording modes | Motion-activated (default), on schedule |
Interface
| System | Reset button |
| Power | DC power port |
| Ethernet | One 10M/100Mbps RJ45 |
| Storage | Micro SD card slot (max 256GB) |
| General | Working Environment | Operating temperature -10° ~ 55° C;
Operating humidity 10%~90% |
| Waterproof | IP66 |
| Dimension | 68x63x188mm |
| Weight | 452g |
