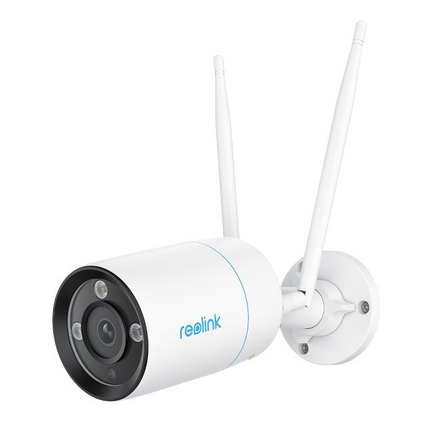

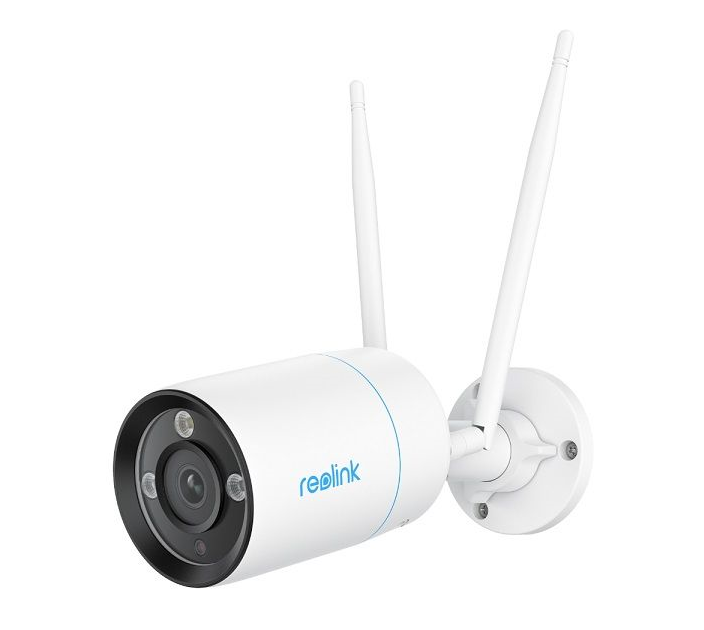

The Reolink W330 is a modern dual-band WiFi surveillance camera and offers an impressive 4K 8MP Ultra HD resolution. This high resolution makes even the smallest details clearly visible, both in real-time display and when playing back recorded material.

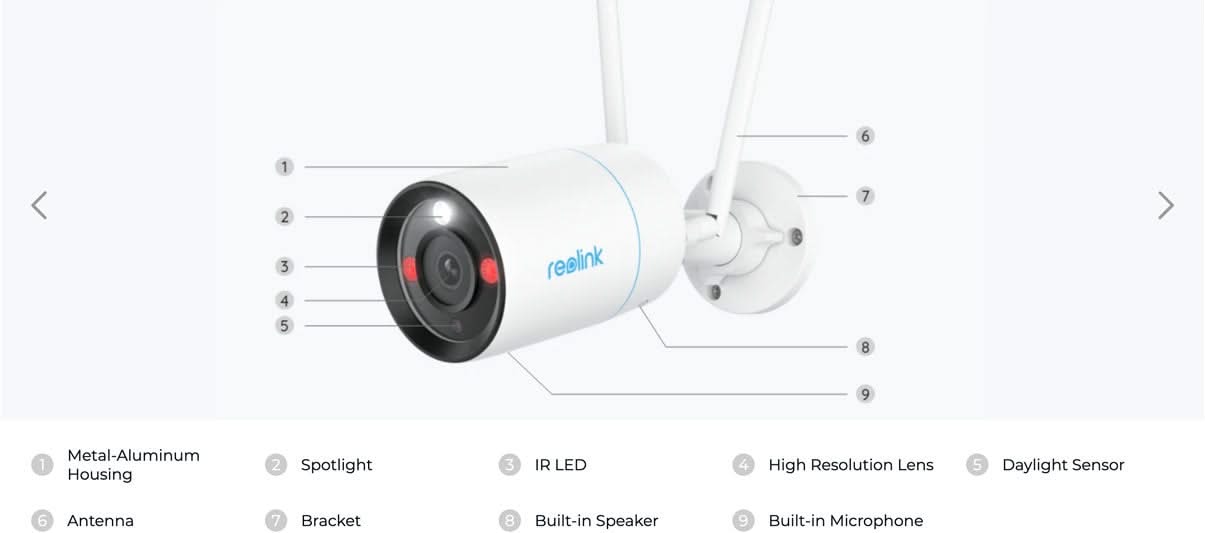

The Reolink W330 has LED lights and a built-in siren. As soon as something unusual is detected, the LEDs light up and the siren makes a loud sound. This scares off the burglar and offers you additional protection. With the integrated spotlight, the camera can record images and videos not only in black and white, but also in color. The activation of the spotlight can be configured according to your preference, either via scheduling or via motion detection.
The camera can distinguish people, vehicles and pets from other objects and sends accurate alerts to prevent false positives. When an unwanted visitor is detected, both the spotlights and the siren are automatically activated.
The built-in microphone and speaker and real-time display let you see, hear and communicate wherever you are.
The Reolink W330 is a dual-band WiFi security camera with 2.4GHz and 5GHz frequency ranges, and thanks to the latest WiFi 6 technology, it enables an even faster and more stable network connection for smoother live viewing and playback of recordings.
There are several options available for storing recordings. The camera supports 24/7 recording, motion-triggered recording, and scheduled recording. Storage can be done on a micro SD card with a capacity of up to 256GB (sold separately, we recommend SD cards with “Endurance” in the name), a Reolink Network Recorder (NVR)*, or an FTP server.
Thanks to motion detection, you have everything in view. This function can be adjusted to your needs. The motion zones are adjustable, so you can select the areas where motion detection is activated and the areas that should not detect any movement. If something is detected, the camera will immediately alert you
Specifications:
Video and audio
Image sensor
1/2.7″CMOS sensor
Solution
3840 x 2160 (8 megapixels) at 20 fps
Lens
f=4.0 mm fixed, F=1.6
Field of view
Horizontal: 88.8° Vertical: 45.2°
Infrared night vision
“Up to 30 meters (100ft); LED: 2pcs/2W/850nm (automatic switching with IR-cut filter)”
Color night vision
With spotlights: 1 piece/4.3W/6500K
Frame rate
Main Stream: 2 fps – 20 fps (Default: 20 fps) Sub Stream: 4 fps – 15 fps (Default: 10 fps)
Code rate
Main Stream: 2048 Kbps – 5120 Kbps (Default: 4096 Kbps) Sub Stream: 64 Kbps – 512 Kbps (Default: 256 Kbps)
Working environment
Operating temperature
-10°C~+55°C (14°F~131°F)
regulate humidity
10% ~ 90%
Couple
Ethernet port
One 10M/100Mbps; RJ45
SD card slot
Supports Max. 256GB microSD card
Audio in/out
Built-in microphone and speaker
Wifi
Wireless standard
IEEE 802.11a/ac/ax/b/g/n
Working frequency
2.4GHz/5GHz
wireless security
WPA/WPA2/WPA3
Other possibilities
Smart alarm
Motion detection; person detection; vehicle detection; animal detection
Recording modes
Motion-activated recording (default); Scheduled recording, 24/7 recording
Smart Home Compatibility
Google Assistant
Software
Supported browsers
Edge, Chrome, Firefox, Safari
Operating system supported
PC: Windows, Mac OS; Smartphone: iOS, Android
Protocols & Standards
HTTPS, SSL, TCP/IP, UDP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
User Access
“Max. 20 users (1 admin and 19 users); Max. 12 simultaneous streams (2 main and 10 substreams)”
Mechanical
Weight (including battery)
energy needs
energy needs
DC 12.0V⎓1A, <12W
